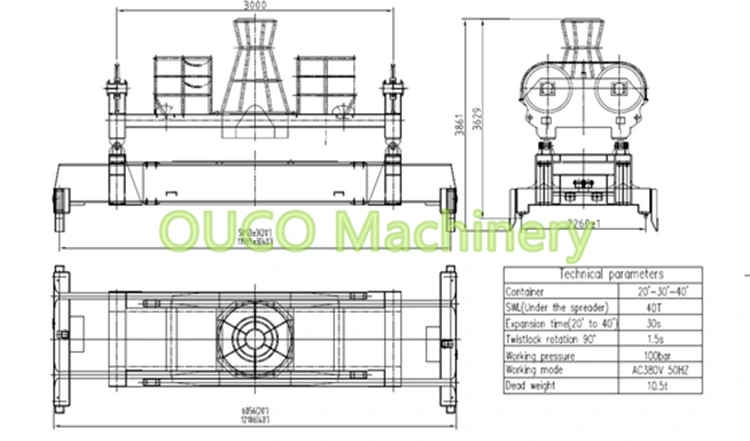

A telescopic spreader for lifting loads of various lengths i.e. load-holders or containers, comprising a main beam and within its longitude at least two opposingly movable telescopic beams. These have at their outer ends means for coupling to the load to be lifted. The main beam has extensions at its upper gable ends which extend out almost as far as that on the same side telescopic beam's outer end when that telescopic beam is in its innermost position. Each extension is designed to accept the extended inner end or that in the opposite direction extensible telescope beam when in its innermost portion. By the invention the forces the main beam are reduced thus rendering the beam a lighter weight.
• Telescopic drive belt instead of chain to reduce noise, weight and maintenance
• Safe and easy access to telescopic drive and components due to mono beam design.
|For Operation With ISO Standard 20' Container||For Operation With ISO Standard 40' Container|
|Rated Lifting Load||35t||Rated Lifting Load||40t|
|Allowable Load Eccentricity||10%||Allowable Load Eccentricity||10%|
|Spring Stroke||100mm||Spring Stroke||100mm|
|Ambient Temperature||-20ºC~ +45ºC||Ambient Temperature||-20ºC~ +45ºC|
|Twistlock Mode||ISO Floating Twistlock, Driven by a Automatic Spring||Twistlock Mode||ISO Floating Twistlock, Driven by a Automatic Spring|
|Flippers Device||No Power, Fixed Flippers||Flippers Device||No Power, Fixed Flippers|
|Application||Portal Crane, Gantry Crane, Crane in the Plant||Application||Portal Crane, Gantry Crane, Crane in the Plant|

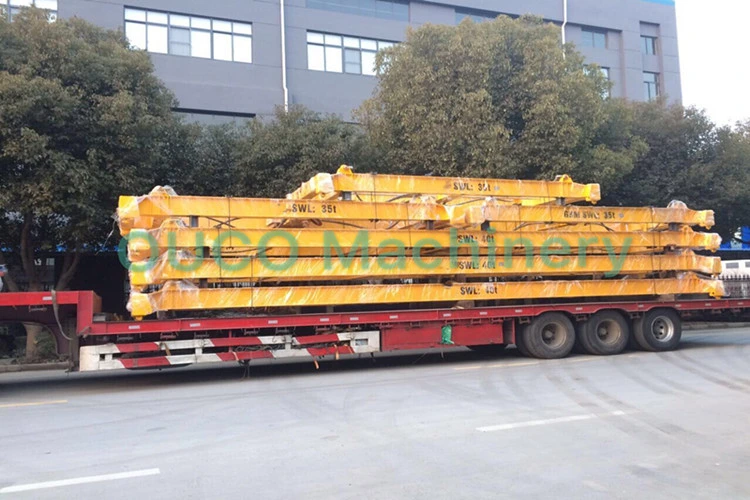

Packing & Shipping:
Our company provides professional packaging and transportation for the products.
