The TB series crane is designed as an electro-hydraulic driven telescopic boom crane, with integrated electro-hydraulic power unit, delivered as a complete unit ready for installation to vessels. The crane is equipped with hydraulic operated winch, hydraulic operated luffing and hydraulic operator extension and hydraulic operated slewing system.
The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of 1200mm and pedestal diameter is depend on the SWL of the crane. The standard TB crane will supply with an operator platform. Operator cabin is optional.
The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.
Main Features And Advantages
The advantages of the telescopic cranes are low weight and less complex design making them maintenance-friendly. This offshore crane especially wildly been used in the mild-east area for the OSV (oil service vessel); which is especially designed according to the harsh working environment there. OUCO Marine Telescopic cranes can be designed and manufactured by clients' requirements in our own factory.
1. Simple design simplifies the maintenance.
2. Compliance with the most demanding safety rules and regulations.
3. Overload protection.
4. Reliable long service life guaranteed through the use of high quality reputable components, extensive endurance testing and easy future upgrades.
SB series crane: End User Advantages
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales searvices support.
|Power source||AC440V, 60Hz, 3P|
We are an integrated company of industry and trade,our factory specialize in this field for many years. We can design and manufacture any type marine/offshore cranes based on your required specifications.
This product is called 3T30M crane, because the feature is that this crane has a Lifting Point that can lift Maximum 3T at 40 meters ( the current boom length ). You may need 4T40M, 3T30M, 5T50M ETC. We can manufacture that you want.
|Spare parts||1 set ( If needed, more spare parts are available to be provided according to customers' requirements )|
|Warranty||1 year ( If needed, warranty time is available to be extended according to customers' requirements )|
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
# lower temperature package up to -40 C*.
# certification for personal lifting.

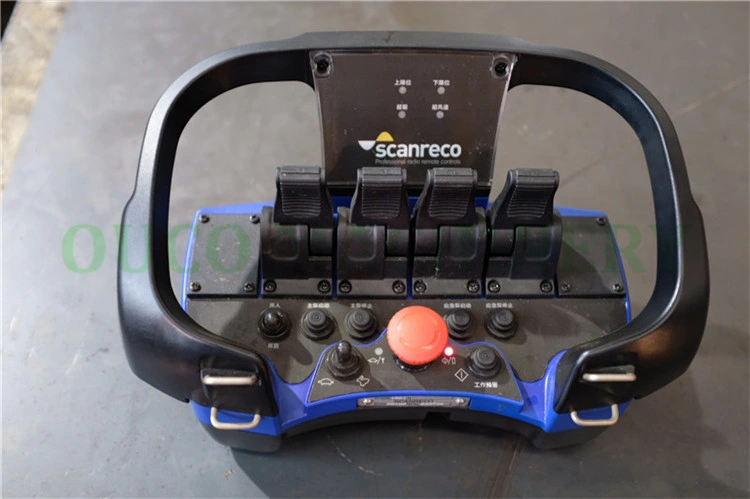

# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.
General Arrangement Drawing
Pre-Sales Service After-Sales Service
1.Inquiry and consulting support. 1. Engineers available to service overseas.
2. View our Factory. 2.Training how to instal and use crane.
3. Check the load test before shipment. 3.12 months free maintenance.
Jiangsu OUCO Heavy Industry And Technology Co.,Ltd
We are an integrated company of industry and trade,our factory specialize in this field for many years.Our factory can design andmanufacture any type marine/offshore cranes based on your technical requirements. To deliver the best possible products for the bestpossible price and quality. We are competitive as we have low labor cost, and deliver quality because we use Europeancomponentsin our cranes.Not only to deliver a good product, by experience we know that a crane is a one time investment for a client and howimportant it is to do repairs at location in a short time as most clients have to deal with a high day-rate from their vessels; "Down-time" is expensive. Do not be hesitate, please feel free to "SEND" inquiry to us.
Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
