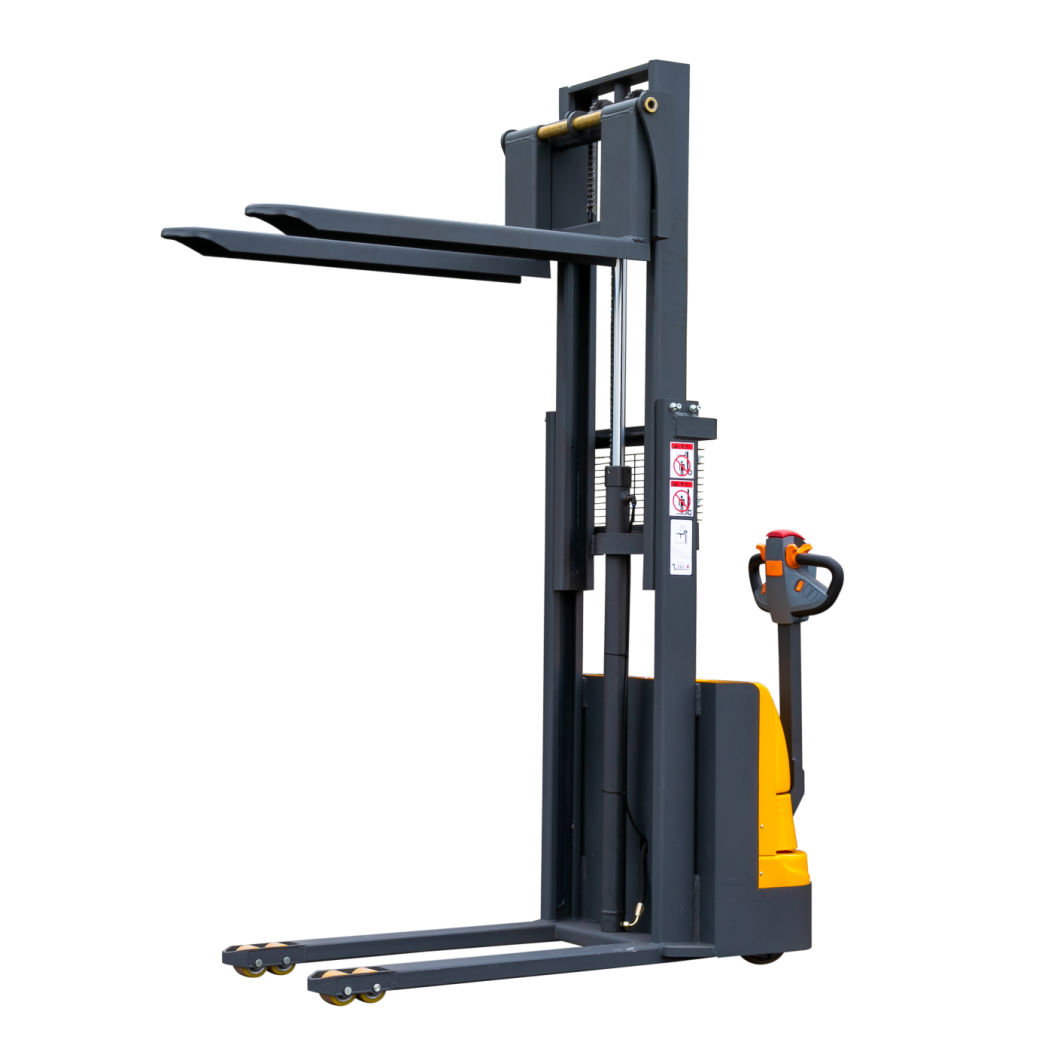

Product Application Technology Characteristics
- With a rated load, it is easy to work on a 5% slope;
- The stacker is compact, flexible, and has good maneuverability. It can also work efficiently and freely in a narrow space;
- The handle has a turtle speed switch and the handle has an upright walking function;
- With adjustable balance wheel, the stacker walks smoothly and there is no shaking on the left and right;
- With good shock absorber effect, the balance wheel assembly is detachable as a whole, which is convenient for maintenance.
|load center distance||c(mm)||500||500|
|wheel tread||y (mm)||1555||1555|
|weight (with battery)||kg||418-526||430-550|
|front wheel size||(mm)||φ250*80||φ250*80|
|rear wheel size||(mm)||φ80*70||φ80*70|
|additional wheel size||(mm)||φ100*50||φ100*50|
|number of wheels(x=driving wheel)||1x+2/4||1x+2/4|
|front wheel track||b10(mm)||886||886|
|rear wheel track||b11 (mm)||525||525|
|lifting height of fork above ground||h3 (mm)||1600/2000/2500/3000/3500||1600/2000/2500/3000/3500|
|height of gantry is lowed||h15 (mm)||2090/1590/1840/2090/2340||2090/1590/1840/2090/2340|
|minimum height of fork above ground||h13 (mm)||90||90|
|overall length||l1 (mm)||1760||1760|
|fork size||s/e/l (mm)||60*170*1100||60*170*1100|
|overall width||b1 (mm)||800||800|
|fork width||b5 (mm)||690||690|
|channel width(1000mm*1200mm tray)||ast (mm)||2200||2200|
|channel width (800mm*1200mm tray)||ast (mm)||2100||2100|
|radius of turning circle||wa (mm)||1370||1370|
|driving speed,full load/no load||km/h||4/5.6||4/5.6|
|lifting speed, full load/no load||m/s||0.08/0.1||0.08/0.1|
|falling speed, full load/no load||m/s||0.09/0.12||0.09/0.12|
|maximum climbing ability ,full load/no load||%||3/7||3/7|
|service brake||electromagnetic brake||electromagnetic brake|
|driving motor power||kw||0.75(ac)||0.75 (ac)|
|lifting motor power||kw||2.2(dc)||2.2 (dc)|
|noise level according to DIN12053||db(a)||<70||<70|
Taixing Andylift Equipment Co.,Ltd. was founded in 2009, we have powerful R&D ability and advanced production technology that make sure of product quality. We have accumulated abundant experience of production and marketing for hand stacker,semi-electric stacker ,electric stacker, manual pallet truck ,semi-electric pallet truck,electric pallet truck etc,our factory also accept customization.So many years of experience makes us professional in the field. We provide the most comprehensive range of products with stable quality, first class after-sale service, technical and parts supports by the professional and high efficiency team working behind. We have already exported various kinds of products to overseas countries and regions such as Indonesia, Vietnam, Myanmar, Korea, Malaysia, South African etc.
Our advantage includes:
- Stocking for standard models, delivery timely;
- Various customized products;
- Response quickly for inquiry and complain;
- Reliable quality and the competitive price;
FAQ1, Q: How long is the warranty of your products?
A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.
2,Q:What payment terms do you accept?
A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.
3,Q:How long can I get my order finished?
A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.
4,Q:Can you customize the configuration/logo/lable/color according to our requirements?
5. Q:Do you accept small order?
A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case by case.
